Volt101A-160mV
Out of Stock - please contact us

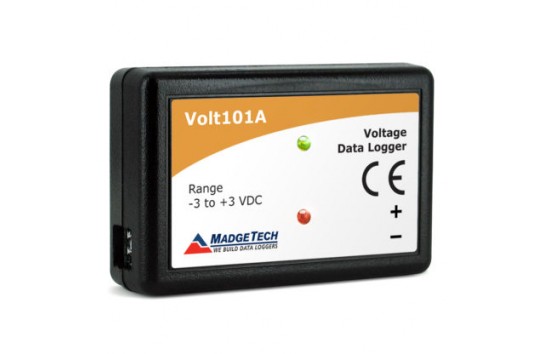

The Volt101A is a compact, low-level DC voltage data logger. Includes standard calibration certificate.
Key Features:
- Compact Size
- 4 Measurement Ranges
The Volt101A is a compact, low-level DC voltage data logger. This device is available in four ranges: ±160 mVDC, ±3.2 VDC, -8 VDC to +24 VDC, and -8 VDC to +32 VDC.

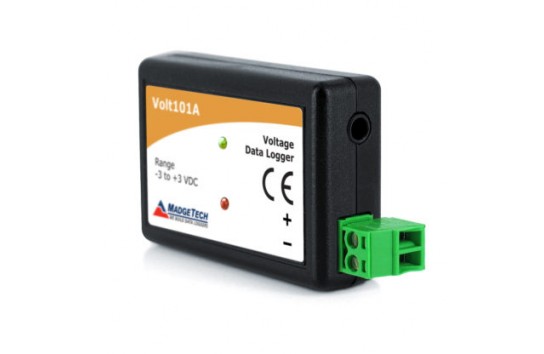

With a user-programmable reading rate of up to 4 Hz, 10-year battery life and the ability to store up to 2,095,104 readings, the Volt101A is ideal for long-term studies. Connect negative and positive wire leads directly to the terminal block on the Volt101A to monitor and measure voltage levels. The terminal block easily disconnects to retrieve the logger for data download without disrupting wiring connectivity.
The Volt101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
